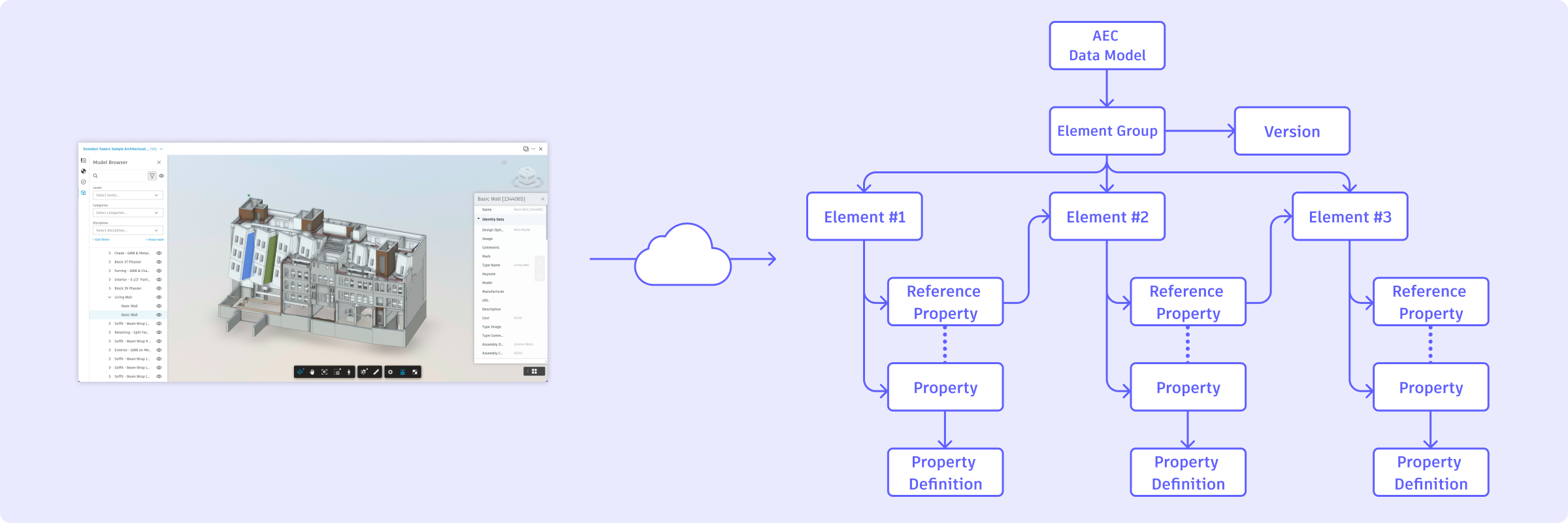

    API Capabilities

    ../../../_images/api_capabilities_workflow.png

    Using the AEC Data Model API, you can perform the following actions:

    • Create new property definition collection.
    • Create custom properties that are not present in the model elementGroup.
    • Add extension elementGroup to store additional properties.
    • Add extension elements/properties to the extension elementGroup.
    • Associate elements in the model elementGroup with extension properties.
    • Add extension properties to existing model elementGroup.
    • Update extension properties.
    • Filter model elements by extension properties.
    • Retrieve all hubs that match a specific criterion, such as the name of the hub that you want. Only exact matches are currently supported.
    • Retrieve a hub using a hub ID.
    • Retrieve all projects that match the filter criteria from a specified hub.
    • Retrieve a project using a project ID from a specified hub.
    • Retrieve all top-level folders within a specified project.
    • Retrieve all subfolders within a specified folder that meet the filter criteria.
    • Retrieve a folder using the folder ID.
    • Retrieve the latest elementGroup data based on elementGroup ID.
    • Retrieve elementGroup by version number and elementGroup ID.
    • Retrieve elementGroups in the given hub using additional RSQL filters, if provided.
    • Retrieve elementGroups in the given project using additional RSQL filters, if provided.
    • Retrieve elementGroups in the given folder using additional RSQL filters, if provided.
    • Retrieve element using element ID.
    • Retrieve elements from given hub using additional RSQL filters, if provided.
    • Retrieve elements from given project using additional RSQL filters, if provided.
    • Retrieve elements from given folder using additional RSQL filters, if provided.
    • Retrieve elements from given elementGroup using additional RSQL filters, if provided.
    • Retrieve elements from given elementGroup and version by using additional RSQL filters, if provided.
    • Retrieve distinct property values for ElementGroups by ID and name. For more information, refer Get Distinct Values of Properties.
    • Retrieve geometry pieces including primitives, geometry instance references, and binary geometry data.
    • Access origin components containing x, y, z coordinates defining element locations.
    • Access axis components containing curves defining element axes.
    • Query geometry binary data with byte range references to actual binary files.
    • Retrieve serialized geometry data including curves (lines, circles, bcurves) and points.
    • Export geometry data to industry-standard formats such as IFC for interoperability across tools and platforms.

    For detailed information on the supported queries, objects, and inputs, refer to the Reference Guide section.
